Datasheet

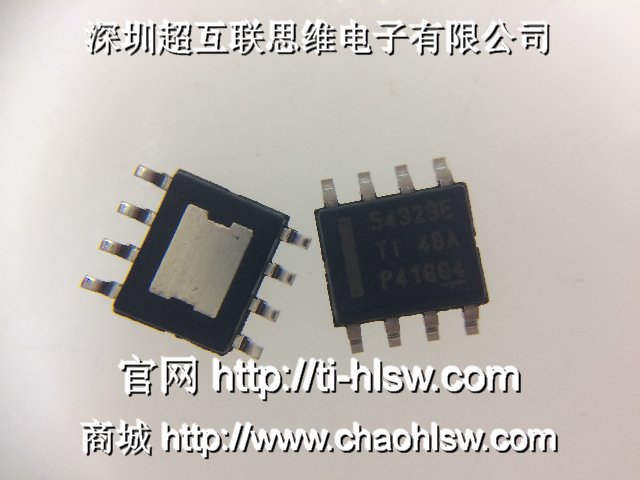

The TPS54329E is an adaptive on-time D-CAP2 mode synchronous buck converter. The TPS54329E enables system designers to complete the suite of various end-equipment power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54329E uses the D-CAP2 mode control that provides a fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54329E to maintain high efficiency during lighter load conditions. The TPS54329E also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V VIN input. The output voltage can be programmed between 0.76 V and 7 V. The device also features an adjustable soft start time. The TPS54329E is available in the 8-pin DDA package, and designed to operate from –40°C to 85°C.
德克萨斯仪器tps54329eddar
一种自适应的tps54329e准时d-cap2模式同步降压转换器。的tps54329e使系统设计者能够以成本有效的完成各种终端设备的电源总线调节器套件，低元件数量，低待机电流的解决方案。为tps54329e主控制回路采用d-cap2模式控制提供快速瞬态响应与任何外部补偿元件。自适应实时控制支持在高负载条件下和生态模式™工作在轻负载的PWM模式之间的无缝转换。生态模式™允许tps54329e在轻负载条件下保持较高的效率。的tps54329e也有一个专有的电路，使设备采用低等效串联电阻（ESR）的输出电容器，如POSCAP或sp-cap，超低ESR陶瓷电容器。该器件工作在4.5-v至18-V VIN输入。输出电压可以在0.76 V和7 V之间编程。该器件还具有可调软启动时间。的tps54329e在8引脚DDA包是可用的，并设计了从40到85–°C操作°C.
