TLV1117LV33DCYR  线性稳压器 (LDO)1A, Positive Fixed Voltage, LowDropout Regulator
  |  3 orders
Price
US $0.15 / PCS
Shipping
-->Arrival time 5-7 days
---->Arrival time 15-27 days
-->Arrival time 5-7 days
Quantity
 PCS
Parts Amount
US $0.15

Choose us! Escort for your needs!!!^_^
Power management
Product Details

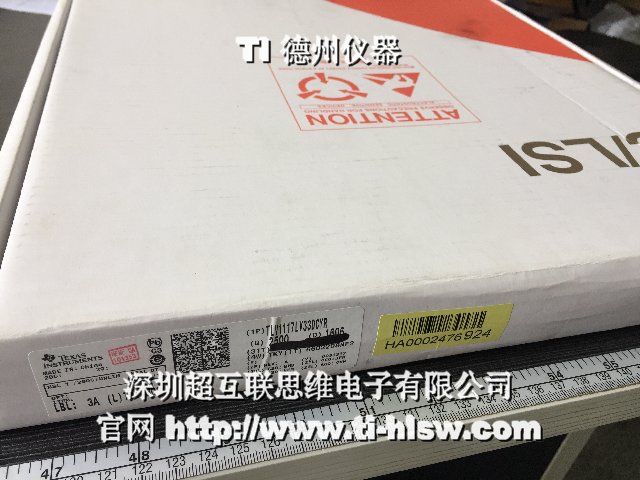

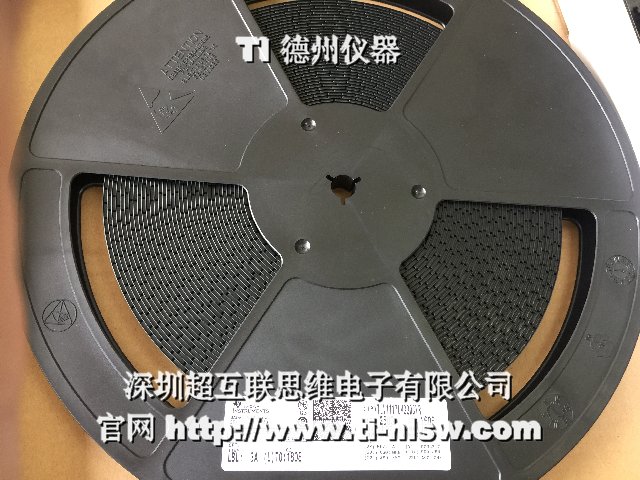

Part no.TLV1117LV33DCYR
Packge/CaseSOT-223
ManutacturerTI
Description线性稳压器 (LDO)1-A, Positive Fixed Voltage, Low-Dropout Regulator
 DatasheetCheck Datasheet



TLV1117LV33DCYR Datasheet, PDF

Electronic Manufacturer Part no Datasheet Electronics Description
Texas Instruments
Texas Instruments
TLV1117LV33DCYR [Old version datasheet]   1-A, Positive Fixed Voltage, Low-Dropout Regulator
TLV1117LV33DCYR [Old version datasheet]   1-A, Positive Fixed Voltage, Low-Dropout Regulator
TLV1117LV33DCYR [Old version datasheet]   1-A, Positive Fixed Voltage, Low-Dropout Regulator
Texas Instruments
Texas Instruments
TLV1117LV33DCYT [Old version datasheet]   1-A, Positive Fixed Voltage, Low-Dropout Regulator
TLV1117LV33DCYT [Old version datasheet]   1-A, Positive Fixed Voltage, Low-Dropout Regulator
TLV1117LV33DCYT [Old version datasheet]   1-A, Positive Fixed Voltage, Low-Dropout Regulator


TLV1117LV33DCYR Datasheet, PDF More



Texas Instruments TLV1117LV33DCYR

The TLV1117LV series of low-dropout (LDO) linear regulators is a low input voltage version of the popular TLV1117 voltage regulator.

The TLV1117LV is an extremely low-power device that consumes 500 times lower quiescent current than traditional 1117 voltage regulators, making the device suitable for applications that mandate very low standby current. The TLV1117LV family of LDOs is also stable with 0 mA of load current; there is no minimum load requirement, making the device an ideal choice for applications where the regulator must power very small loads during standby in addition to large currents on the order of 1 A during normal operation. The TLV1117LV offers excellent line and load transient performance, resulting in very small magnitude undershoots and overshoots of output voltage when the load current requirement changes from less than 1 mA to more than 500 mA.

A precision bandgap and error amplifier provides 1.5% accuracy. A very high power-supply rejection ratio (PSRR) enables use of the device for post-regulation after a switching regulator. Other valuable features include low output noise and low-dropout voltage.

The device is internally compensated to be stable with 0-Ω equivalent series resistance (ESR) capacitors. These key advantages enable the use of cost-effective, small-size ceramic capacitors. Cost-effective capacitors that have higher bias voltages and temperature derating can also be used if desired.

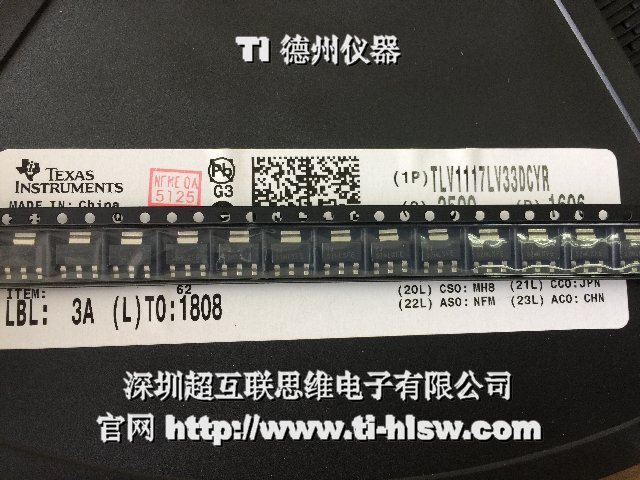

The TLV1117LV series is available in a SOT-223 package.

德克萨斯仪器tlv1117lv33dcyr
低压差线性稳压器(LDO)tlv1117lv系列是一种低投入的流行tlv1117电压调节器电压版本。
是的tlv1117lv功耗极低的设备消耗的500倍,比传统的1117电压调节器的静态电流降低,使设备适合应用要求非常低的待机电流。基于tlv1117lv家庭也是稳定的0毫安的负载电流;没有最低负荷要求,使设备在功率很小的负荷调节器必须在待机状态,除了大电流的1的正常运行时,为应用的理想选择。tlv1117lv提供出色的线路和负载瞬态性能,从而在很小幅度的下冲和过冲的输出电压在负载电流需求变化小于1毫安到500毫安以上。
精密带隙和误差放大器提供1.5%的精度。一个非常高的电源抑制比(PSRR)使调整后的设备使用后的开关调节器。其他有价值的功能包括低输出噪声和低压差电压。
该设备是内部补偿是稳定的0Ω等效串联电阻(ESR)电容器。这些关键优势使成本效益,小型陶瓷电容器的使用。如果需要,也可以使用具有较高偏置电压和温度降额的成本有效的电容器。
在一系列的tlv1117lv SOT-223封装是可用的
